SoC Register Management Platform

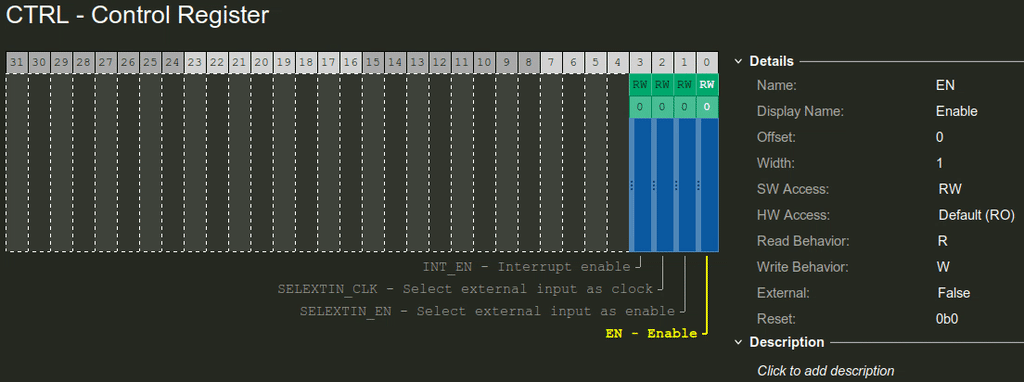

Register Manager Visual Editor Interface
Register Manager Visual Editor Interface

Register Manager is a commercial-grade register management tool developed by Jade Design Automation, specifically designed for hardware/software interface design in System-on-Chip (SoC) development. It programmatically captures and validates the HW/SW interface of SoCs for data integrity, then generates RTL, Verification, Documentation, and Software deliverables in seconds.

Positioned as a superior alternative to in-house scripted solutions, Register Manager delivers the same performance and flexibility while eliminating the maintenance burden and scalability risks associated with internal tools. It enables engineering teams to focus on high-value work rather than maintaining infrastructure.

Key Features

Performance & Flexibility Captures, validates, and generates Verilog, UVM, C-headers, and documentation for a full IoT SoC in seconds. Shell mode available for power users.
Visual Editor Rich, intuitive GUI with full keyboard support and focus traversal for efficient data capture.
Import & Migration Powerful import API with built-in IP-XACT and SystemRDL importers. Custom format migration supported via API.
IoT & Security Out-of-box support for Arm TrustZone®, v8-M architecture security attributes, and secure/non-secure memory map region separation.
Lightweight Deployment Minimal disk space and memory footprint.
Licensing Flexibility Node-locked and floating licenses, self-hosted and cloud-hosted servers, license queuing, and overdraft options.
Production-Ready Outputs Verilog RTL, UVM register descriptions, C-headers, HTML documentation, and IP-XACT interoperability formats.

Target Users

Target User Value Proposition
HW Design & Verification Teams Instant productivity booster with production-ready Verilog and UVM outputs
System Architects Single source of truth for system-level information; broadcast to downstream teams
Technical Writers Built-in reStructuredText support renders release-quality HTML documentation
SW Engineers Register information loaded into debuggers — no need to flip through docs
Engineering Managers Consistent, high-quality release deliverables for customers and internal teams
IP Startup Companies Flexible licensing scaled for smaller organizations
SoC Design Houses Enterprise-level licensing and scalable tooling for large teams

Technical Specifications

Category Details
RTL Output Production-ready Verilog
Verification Output UVM register model
Software Output C-header files; debugger-integrated register information
Documentation Output HTML via built-in reStructuredText rendering
Interoperability IP-XACT 1685-2009 and 1685-2014
Import Formats IP-XACT, SystemRDL, custom via API
Security Support Arm TrustZone®, v8-M, AMBA®-based systems
Supported Attributes Offsets, widths, access types, reset values, secure/non-secure regions
Deployment Lightweight; self-hosted or cloud-hosted license servers
License Types Node-locked, floating, license queuing, overdraft options

Why Register Manager?

Register Manager serves as the single source of truth for HW/SW interface specifications, improving collaboration across architecture, design, verification, documentation, and software teams while reducing development time and improving deliverable quality.
