The most accurate converting tool on the market for converting  your Allegro Board Design to IBIS EBD



Many module providers are struggling with the IP protection issue by providing entire Board/Module design to the market.

Not any more!

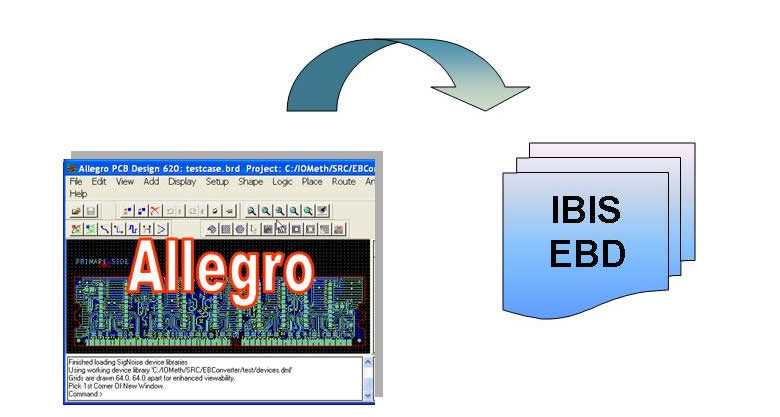

EBConverter™ provides a solution for converting Cadence Allegro™ Layout board to IBIS EBD Industry Standard Modeling Format (http://www.eigroup.org/ibis).
Many module vendors often deliver their board designs to their customers for the high-speed system designs. There are risks for their IP protections as well as tool interoperability issues. IBIS EBD provides a standard (ANSI/EIA) modeling format to allow module vendors deliver the standard modeling format to their customers as well as protecting their IP in the module designs.

EBConverter™ is the most accurate EBD converter tool on the market. It automatically uses the embedded terminator solution in the EBD to provide complete extended netlist and generates IBIS Terminator models with power/ground connections according to the connections in the layout board.

EBConverter V1.2™ Capabilities and Functionalities:

  • Simplest User Graphic Interface for ease of use
  • Flexible Connect Device (Connector) selection
  • Complete Connector Pin list
  • Automatic serial/parallel terminator handling for complete extended netlist
  • Automatic embedded terminations in [Path Description] and IBIS Terminator model generations
  • Keep all the data name (Net, RefDes, etc.) as the same as original board
  • Remain DML boardmodel segment names as comments for easy verification
  • Automatic Terminator Mapping Functionalities
  • Project Save/Load capabilities

Snap Shots
